F-K series is a high-speed optical laser micrometer based on laser diffraction principle.It is fast enough to provide diameter, lumps and necks measurement in 2-axis.
Single axis sampling frequency of 10KHz
Sampling frequency can reach to 10KHz due to no motor running speed limitation,which enables to get more information of the object under measurement.
Measurement is accurate even on vibrating object

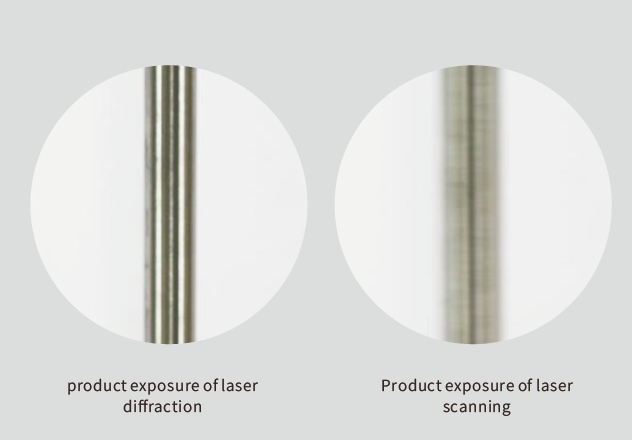

Extremely short exposure time, capable of capturing object image without any blur shadow,promising accurate measurement.
Parameters
| Part No. | F2010-K | ||||
| Axis | 2-axix | ||||
| Sampling Frequency | 20KH/z(1-axis ：10KH/z） | ||||
| Measurement range | 0.2~10mm | ||||
| Repeatability | ±0.1μm | ||||
| Accuracy | ±（0.0005+0.01%*D)mm | ||||
| MIN detectable defect height | 0.01mm | ||||
| Dimensional | 155 x 140 x 58mm | ||||
| Power supply | 24V ±10% 40VA | ||||
| Working temperature | 5~50 ℃ | ||||
| Storage temperature | 0~60℃ | ||||
| Relative humidity | Maximum 95%, no condensation | ||||
| Display | LED display | ||||
| Communication interface | Standard: RS485 Modbus-RTU,CAN，WIFI Option: PROFIBUS, PROFINET,EtherNet/IP,EtherCAT | ||||
| Electrical port | Standard: digital output(relay),digital input,encoder pulse input port Option:PI feedback control | ||||
| Data collection and analysis | support(option DS14 ZT Display control system) | ||||
| Out-of-tolerance | Available | ||||
| Measurement mode | Transparent/non-transparent | ||||
